JS850-560 Servo High Speed Disposable Plastic Coffee Cup Manufacturing Machine

JS750-420 Servo Automatic Disposable Plastic Water Cup Making Machine is controlled by full servo system, the positioning is more accurate and the forming is more stable. The machine has the advantages of stable operation, mainly used in production PS,PP,PE,HIPS and other thermoplastic sheet, positive pressure forming to be different kind of jelly cups, beverage cups, packaging boxes, etc high grade container products. The forming area is 750 x 420mm, forming depth 180mm, max production speed 35 cycle/min.

JS850-560 Servo High Speed Disposable Plastic Coffee Cup Manufacturing Machine is controlled by full servo system, the positioning is more accurate and the forming is more stable. The machine has the advantages of stable operation, mainly used in production PS,PP,PE,HIPS and other thermoplastic sheet, positive pressure forming to be different kind of jelly cups, beverage cups, packaging boxes, etc high grade container products. The forming area is 850 x 560mm, forming depth 180mm, max production speed 35 cycle/min.

JY750-520 Hydraulic Disposable Plastic Tea Cup Making Machine is suitable for producing plastic cup bowl box containers and lids. This machine is controlled by thermoforming and hydraulic technology, with our years of machine manufacturing experience to successfully develop this new generation high efficiency and energy saving machine. The whole machine is controlled by PLC and Servo system (Equipped with a stretching servo motor), the positioning is more accurate and the thermoforming is more stable. The machine has the advantages of stable operation, low noise, energy saving and environmental protection, high grade of finished products. This machine is mainly used in production of PP PS PE PET HIPS PLA thermoplastic sheet with positive pressure forming to become different kinds of jelly cups, beverage cups, packaging boxes high grade containers, and so on. The forming area is 750 x 520mm, forming depth 180mm, max production speed 35 cycle/min.

JY850-560 Hydraulic Disposable Plastic Cup Bowl Making Machine Thermoforming Machine is suitable for producing plastic cup bowl box containers and lids. This machine is controlled by thermoforming and hydraulic technology, with our years of machine manufacturing experience to successfully develop this new generation high efficiency and energy saving machine. The whole machine is controlled by PLC and Servo system (Equipped with a stretching servo motor), the positioning is more accurate and the thermoforming is more stable. The machine has the advantages of stable operation, low noise, energy saving and environmental protection, high grade of finished products. This machine is mainly used in production of PP PS PE PET HIPS PLA thermoplastic sheet with positive pressure forming to become different kinds of jelly cups, beverage cups, packaging boxes high grade containers, and so on. The forming area is 850 x 560mm, forming depth 180mm, max production speed 35 cycle/min.

Functional features: 1、The dynamic structure adopts the optimized design of the conjugate cam, and the operation is more stable. 2、Quick mold change design greatly improves production efficiency. 3、The mold table is designed with a lifting function, which can directly adjust the depth of the mold entering the knife. 4、Digital screen setting and intelligent data storage system. 5、The speed is up to 45 cycles/min. 6、The whole machine adopts Austrian B&R control system.

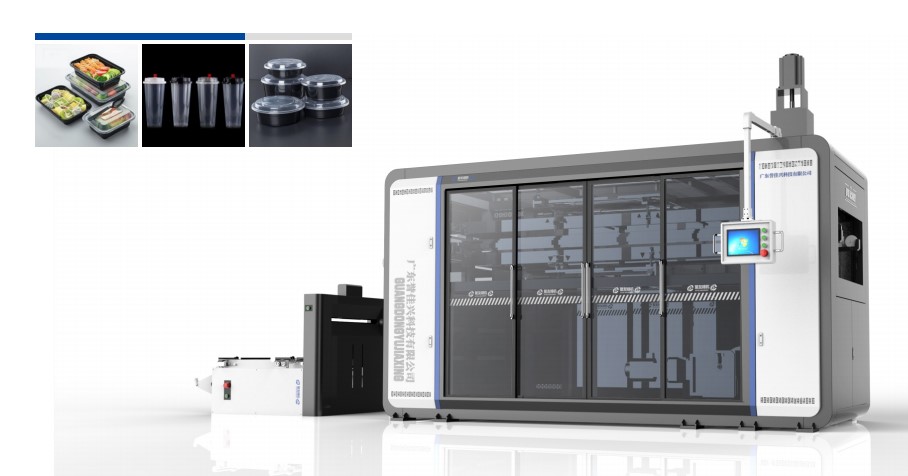

Functional features: 1、The dynamic structure adopts the optimized design of the conjugate cam, and the operation is more stable. 2、Quick mold change design greatly improves production efficiency. 3、The mold table is designed with a lifting function, which can directly adjust the depth of the mold entering the knife. 4、Digital screen setting and intelligent data storage system. 5、The speed is up to 40 cycles/min. 6、The whole machine adopts Austrian B&R control system. Technical Data NO. Description Specification 1 Model 80H 2 Forming Area 760 x 470 mm 3 Applicable Raw Material PP, PS, PET, HIPS, PE 4 Sheet Thickness 0.3-3.0 mm 5 Sheet Width ≤820 mm 6 Dimension 13.5 x 4.5 x 3.8m 7 Max. Forming Depth ≤230mm 8 Work Frequency ≤40 Cycle/min 9 Heating Rated Power ≈210kw 10 Power Supply 380V/50Hz 11 Pressure Supply 0.6-0.8 12 Machine Total Weight ≈16T   Product Picture

JY750-420 Hydraulic Disposable Plastic Glass Making Machine is suitable for producing plastic cup bowl box containers and lids. This machine is controlled by thermoforming and hydraulic technology, with our years of machine manufacturing experience to successfully develop this new generation high efficiency and energy saving machine. The whole machine is controlled by PLC and Servo system (Equipped with a stretching servo motor), the positioning is more accurate and the thermoforming is more stable. The machine has the advantages of stable operation, low noise, energy saving and environmental protection, high grade of finished products. This machine is mainly used in production of PP PS PE PET HIPS PLA thermoplastic sheet with positive pressure forming to become different kinds of jelly cups, beverage cups, packaging boxes high grade containers, and so on. The forming area is 750 x 420mm, forming depth 180mm, max production speed 35 cycle/min.
