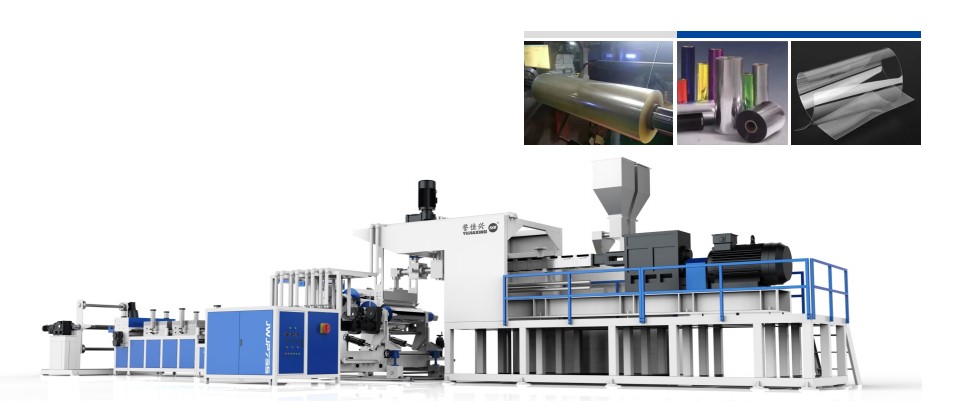

JNWS75-1000 PET/PLA Twin-screw Plastic Sheet Extruding Machine

JNWS75-1000 PET/PLA Twin-screw Plastic Sheet Extruding Machine

JNWS75-1000 PET/PLA Twin-screw Plastic Sheet Extruding Machine is mainly used for packaging of blister, thermoforming industry fields. PP/PS/PE sheet thermoforming by second-process to make various product, mainly used in food, medicine, medical equipment. We are specifically do the data optimization for speed ratio of volume and screw, substantially increased extruding output and material melting performance.

  • Processing Type :

    JNWS75-1000 PET/PLA Twin-screw Plastic Sheet Extruding Machine
  • Plastic Type :

    PET, PLA
  • Production Speed :

    350~450 kg/h
  • Brand Name :

    Yujiaxing
  • Voltage :

    380V/50Hz, 3P+N+E
  • Dimension :

    1900×500×400 cm
  • Power :

    about 150kw
JNWS75-1000 PET/PLA Twin-screw Plastic Sheet Extruding Machine

JNWS75-1000 PET/PLA Twin-screw Plastic Sheet Extruding Machine is mainly used for packaging of blister, thermoforming industry fields. PP/PS/PE sheet thermoforming by second-process to make various product, mainly used in food, medicine, medical equipment. We are specifically do the data optimization for speed ratio of volume and screw, substantially increased extruding output and material melting performance.

FEATURES AT A GLANCE
1.Keep good material's mixing effect and plastify quality, can maximum improve the finished product quality, reduce the processing defect.
2. Modular design, compact structure, easy operation, simple maintenance.
3. Can realize online crushing rim, automatic wrapping roll and winding, improve product quality, reduce cost..
4. With advanced electronic software system, parameter setting, data calculation, alarming automatic function, greatly improved operator safety and labor strength

Product Parameters:
1 Description Specification
2 Screw Diameter ∅75mm
3 Suitable Material PET/PLA/PETG
4 Sheet Layer A
5 Tolerance Thickness ±0.01mm
6 Sheet Thickness 0.3-2.0mm
7 Sheet Width 390-850mm
8 Screw Speed 20-200rpm
9 Output 400-450kg/h
10 Power Supply 380V/50Hz 3P+N+E
11 Main Motor 132Kw
12 Max Total Power ≤250Kw
13 Average Power ≈150Kw
14 PLC INOVANCE
15 Touch Screen INOVANCE 15"
16 Machine Weight ≈20 Ton
17 Dimension LxWxH 1900x500x400cm

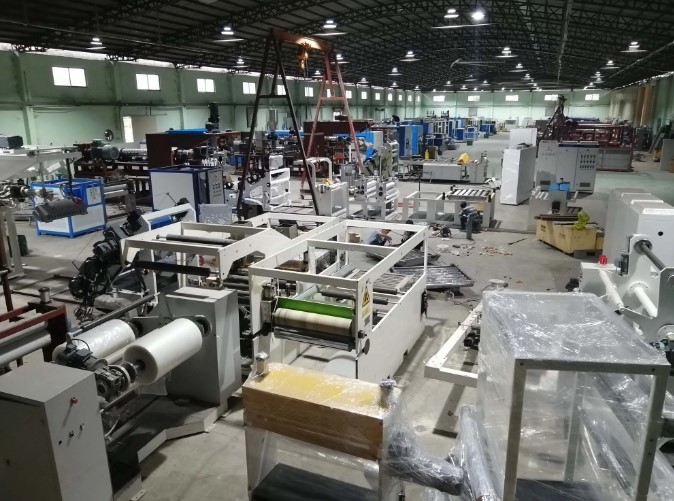

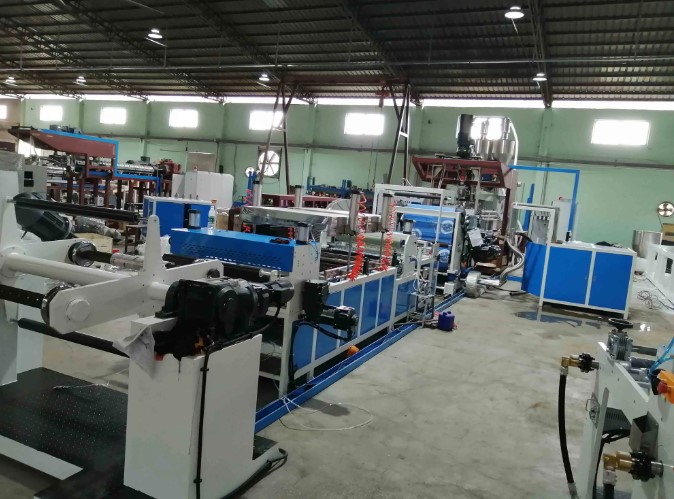

Products Pictures:
