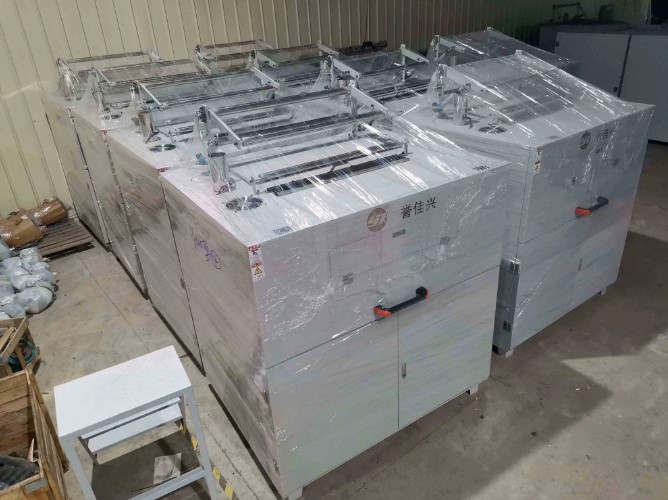

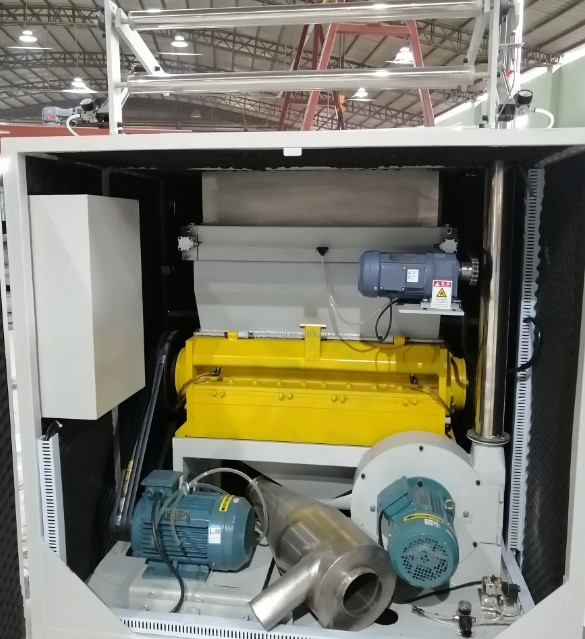

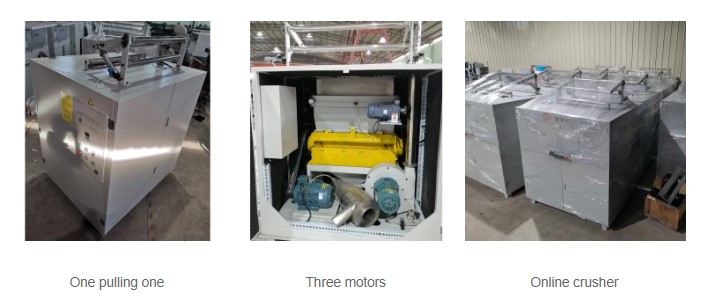

FY Online Crusher One Pulling One is suitable for online crushing waste plastic sheet. According to market demand, the online crusher sets crushing, conveying, storing in one operation, and under totally enclosed type for production, avoiding the pollution of ambient noise, saving labor and meeting the environmental requirements, also solving the waste materials space problem, maximum solving the problems of traditional production labor force as complicated, repeatability and labor waste.
Processing Type :
FY Muted Online Plastic Waste Sheet Crusher Crushing MachinePlastic Type :
PET/PP/PS/PVC/PLAProduction Speed :
600～800 Kg/hBrand Name :
YujiaxingVoltage :
380V/50Hz (Three phase four wire)Dimension :
2000×1440×2250 mmPower :
≤16 Kw| No. | Model | FY-800 | FY-1000 | FY-1200 |
| 1 | Waste Sheet Width | ≤800mm | ≤1000mm | ≤1200mm |
| 2 | Suitable Material | PET/PP/PS/PVC/PLA | PET/PP/PS/PVC/PLA | PET/PP/PS/PVC/PLA |
| 3 | Sheet Thickness | ≤3.0mm | ≤3.0mm | ≤3.0mm |
| 4 | Crushing Capacity | 400-600kg/h | 500-700kg/h | 600-800kg/h |
| 5 | Cutter Material | SKD11 | SKD11 | SKD11 |
| 6 | Fixed Cutter | 4Pcs | 4Pcs | 4Pcs |
| 7 | Rotate Cutter | 24Pcs | 30Pcs | 36Pcs |
| 8 | Power Supply | 380V/50Hz (Three phase four wire) | 380V/50Hz (Three phase four wire) | 380V/50Hz (Three phase four wire) |
| 9 | Main Motor Power | 7.5Kw | 7.5Kw | 9Kw |
| 10 | Sending Motor Power | 4.0Kw | 4.0Kw | 5.0Kw |
| 11 | Traction Motor Power | 0.75Kw | 0.75Kw | 0.75Kw |
| 12 | Total Power | ≤13Kw | ≤14Kw | ≤16Kw |
| 13 | Water Circulation | ≤15L/min | ≤16L/min | ≤17L/min |
| 14 | Working Noise | 70-90db | 72-92db | 75-95db |
| 15 | Machine Weight | ≈1.5Ton | ≈1.6Ton | ≈1.8Ton |
| 16 | Dimension LxWxH | 1600x1340x2150mm | 1800x1340x2150mm | 2000x1440x2250mm |
FJ-1000 Muted Plastic Waste Sheet Centralized Crusher is suitable for crushing waste plastic sheet, container. According to market demand, the crusher sets crushing, conveying, storing in one operation, and under totally enclosed type for production, avoiding the pollution of ambient noise, saving labor and meeting the environmental requirements, also solving the waste materials space problem, maximum solving the problems of traditional production labor force as complicated, repeatability and labor waste.
Learn More
FD High Speed Muted Online Plastic Waste Sheet Crushing Machine is mainly used for making environmental cups, bowls, boxes and also matching for other packaging machinery (Automatic Plastic Cup Making Machine, Multi-Station Thermoforming Machine). Our machine according to market demand with crushing, conveying, storing in one operation, and under totally enclosed type for production, avoided the pollution of ambiet noise, saved labor and meet the environmental requirement, also solved the waste materials space problem, maximum solved the problems of traditional production labor force as complicated, repeatability and labor waste.
Learn More
FY Online Crusher One Pulling One is suitable for online crushing waste plastic sheet. According to market demand, the online crusher sets crushing, conveying, storing in one operation, and under totally enclosed type for production, avoiding the pollution of ambient noise, saving labor and meeting the environmental requirements, also solving the waste materials space problem, maximum solving the problems of traditional production labor force as complicated, repeatability and labor waste.
Learn More
FE Muted Online Plastic Waste Sheet Crusher (one pulling two) is suitable for online crushing waste plastic sheet. According to market demand, the online crusher sets crushing, conveying, storing in one operation, and under totally enclosed type for production, avoiding the pollution of ambient noise, saving labor and meeting the environmental requirements, also solving the waste materials space problem, maximum solving the problems of traditional production labor force as complicated, repeatability and labor waste.
Learn More
FB Plastic Rim Material Waste Sheet Online Crusher is suitable for online crushing waste plastic sheet. According to market demand, the online crusher sets crushing, conveying, storing in one operation, and under totally enclosed type for production, avoiding the pollution of ambient noise, saving labor and meeting the environmental requirements, also solving the waste materials space problem, maximum solving the problems of traditional production labor force as complicated, repeatability and labor waste.
Learn More
