FJ-1000 Muted Plastic Waste Sheet Centralized Crusher

FJ-1000 Muted Plastic Waste Sheet Centralized Crusher is suitable for crushing waste plastic sheet, container. According to market demand, the crusher sets crushing, conveying, storing in one operation, and under totally enclosed type for production, avoiding the pollution of ambient noise, saving labor and meeting the environmental requirements, also solving the waste materials space problem, maximum solving the problems of traditional production labor force as complicated, repeatability and labor waste.

Processing Type :
FJ-1000 Muted Plastic Waste Sheet Centralized Crusher
Plastic Type :
PET/PP/PS/PVC/PLA
Production Speed :
700～800 Kg/h
Brand Name :
Yujiaxing
Voltage :
380V/50Hz (Three phase four wire)
Dimension :
1760*2080*2330 mm
Power :
≤40 Kw

Inquire Now

Product Details

FJ-1000 Muted Plastic Waste Sheet Centralized Crusher

1) Open design, simple cleaning, easy maintenance, is an economical and practical equipment;

2) Cutter makes of alloy steel material, high hardness, strong wear resistance, can be repeatedly grinding, sturdy and durable;

3) Feed hopper divide into economical type and soundproof type, economical type welding and paint spraying with single layer steel plate; soundproof type welding with stainless steel lining and steel plater outer structural, middle is temperature resistance soundproof cotton, can effectively reduce noise;

4) Whole machine equipped with various safety guard, screen easy cleaning, safe operation;

5) Customers different request order is acceptable.

Product Specifications:

No.	Model	FJ-900	FJ-1000	FJ-1100
1	Waste Sheet Width	≤900mm	≤1000mm	≤1200mm
2	Suitable Material	PET/PP/PS/PVC/PLA	PET/PP/PS/PVC/PLA	PET/PP/PS/PVC/PLA
3	Sheet Thickness	≤3.0mm	≤3.0mm	≤3.0mm
4	Crushing Capacity	600-700kg/h	700-800kg/h	800-900kg/h
5	Cutter Material	SKD11	SKD11	SKD11
6	Fixed Cutter	4Pcs	4Pcs	4Pcs
7	Rotate Cutter	27Pcs	30Pcs	33Pcs
8	Power Supply	380V/50Hz (Three phase four wire)	380V/50Hz (Three phase four wire)	380V/50Hz (Three phase four wire)

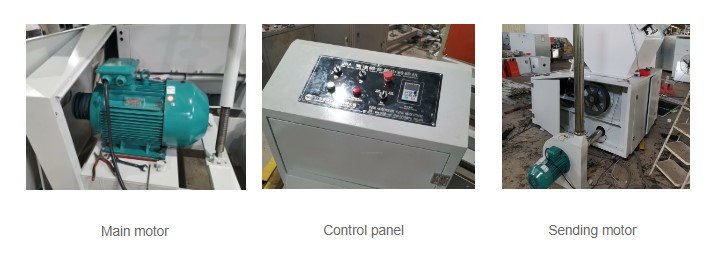

9	Main Motor Power	30Kw	30Kw	36Kw
10	Sending Motor Power	4Kw	4Kw	6Kw
11	Traction Motor Power	1Kw	1Kw	2Kw
12	Total Power	≤40Kw	≤40Kw	≤50Kw
13	Water Circulation	≤15L/Min	≤16L/Min	≤17L/Min
14	Working Noise	70-100db	72-102db	76-106db
15	Machine Weight	≈1.3Ton	≈1.4Ton	≈1.5Ton
16	Dimension LWH	166020702330mm	176020802330mm	186020902330mm

Hot Tags : plastic waste sheet crushing machine plastic waste sheet crusher Muted plastic crusher plastic crushing machine plastic crush machine plastic waste product crusher
