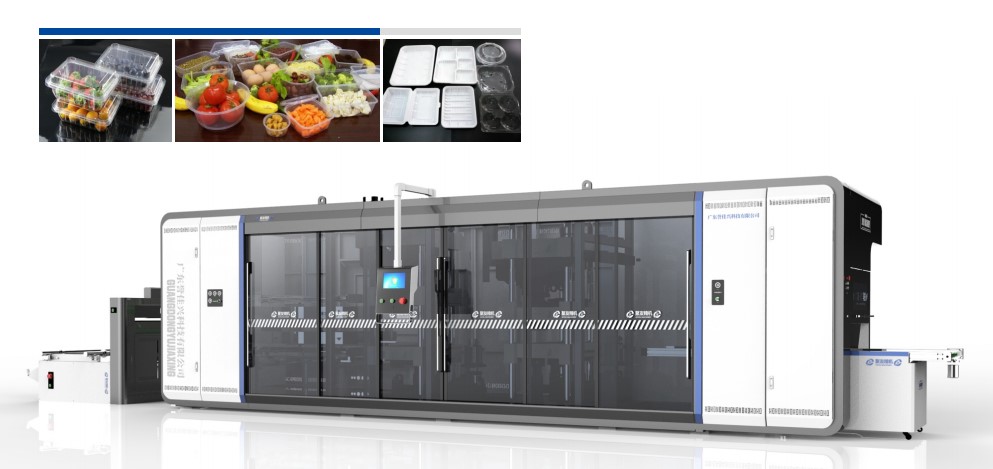

JD680-500 Positive And Negative Pressure Three Stations Plastic Thermoforming Equipment

JD680-500 Positive And Negative Pressure Three Stations Plastic Thermoforming Equipment

JD680-500 Positive And Negative Pressure Three Stations Plastic Thermoforming Equipment is suitable for producing disposable plastic food container, food container, lunch box, tray etc. It has three stations, forming, cutting and stacking. Its forming area is 680X500mm, forming depth 110mm, speed 60cycle/min. It is mechanical, pneumatic, electrical integration. Each action program is controlled by PLC. Touch screen operation is simple and convenient.The machine has the advantages of stable operation, low noise, energy saving and environmental protection, high grade of finished products. This machine is mainly used in production of PP PS PE PET HIPS PLA thermoplastic sheet with vacuum & positive pressure forming to become different kinds of containers.

  • Processing Type :

    JD680-500 Positive And Negative Pressure Three Stations Plastic Thermoforming Equipment
  • Plastic Type :

    APET, PP, PS, BOPS, PVC, PLA
  • Production Speed :

    ≤60 Cycle/Min
  • Brand Name :

    Yujiaxing
  • Voltage :

    380V/50Hz (Three phase four wire)
  • Dimension :

    11150x2300x3000 mm
  • Power :

    ≈60 Kw
JD680-500 Positive And Negative Pressure Three Stations Plastic Thermoforming Equipment

JD680-500 3 Stations Disposable Plastic Food Container Tray Thermoforming Equipment Machine is suitable for producing disposable plastic food container, food container, lunch box, tray etc. It has three stations, forming, cutting and stacking. Its forming area is 680X500mm, forming depth 110mm, speed 60cycle/min. It is mechanical, pneumatic, electrical integration. Each action program is controlled by PLC. Touch screen operation is simple and convenient.The machine has the advantages of stable operation, low noise, energy saving and environmental protection, high grade of finished products. This machine is mainly used in production of PP PS PE PET HIPS PLA thermoplastic sheet with vacuum & positive pressure forming to become different kinds of containers.

1. Mechanical, pneumatic, electrical integration. Each action program is controlled by PLC. Color touch screen operation is simple and convenient;
2. Pressure & Vacuum thermoforming;
3. Up & Down mould forming style;
4. Sheet servo feeding, length stepless adjusting, high speed, accuracy, stability;
5. The opening moulds and closing moulds in the stations of forming and cutting are controlled by servo motors, the plastic product is output in automatic counting;
6. Down stacking style for plastic product;
7. With memory function for product information & data 50 sets;
8. Sheet feeding caterpillar width can be synchronized or separate electric adjusted.

Product Parameter
NO. Descriptions Parameters
1 Suitable Material APET, PP, PS, BOPS, PVC, PLA
2 Sheet Width 350-720mm
3 Sheet Thickness 0.2-1.5mm
4 Max Sheet Roll Diameter 800mm
5 Max Forming Area 680x500 mm
6 Max Cutting Area 680x500 mm
7 Forming Mould Width 350-680 mm
8 Max Forming Depth 110 mm
9 Forming Mould Stroke Up 150mm, Down 150mm
10 Cutting Mould Stroke Up 150mm, Down 150mm
11 Max Production Speed 60 cycle/min
12 Power Supply 380V/50Hz (Three phase four wire)
13 Max Heating Power 121.6 Kw
14 Max Total Power 150 Kw
15 Average Running Power ≈60 Kw
16 Product Cooling Method Water Cooling
17 Vacuum Pump UniverstarXD100
18 Air Consumption ≥2m³/min
19 Air Pressure 0.8 Mpa
20 Dimension (LxWxH) 11150x2300x3000 mm
21 Machine Total Weight ≈12Ton

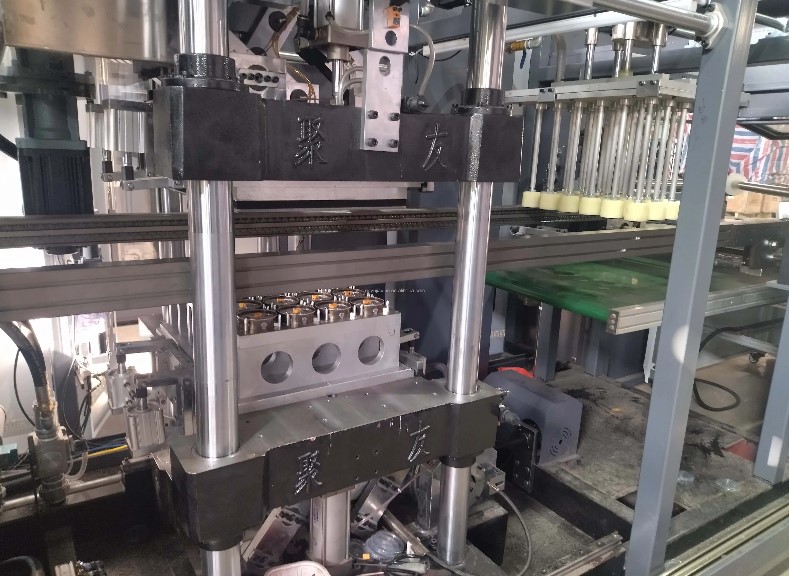

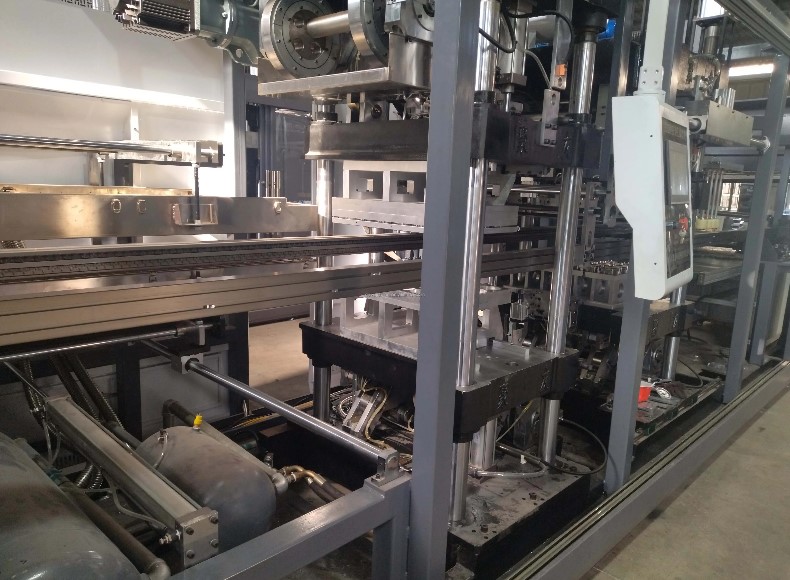

Detail Images:
